3 Models for Any Workshop

865 Hose Reels

  • 856S - Spring hose reel available in short & wide body
  • 865SD - Spring hose reel w/ damper available in short & wide body
  • 865M - Motorized hose reel only available in wide body


  • Reels are available in 4", 5", 6", and 8" diameter.  The 4"-6" reels all connect to 6" ducting when using a central fan.
  • 8" reels all connect to 8" ducting


  • All of the Nederman 865 Reels come with mounting brackets and full size templates to simplify the installation.  The 865S & 865SD come with stop collars as well.

Spring vs. Motor Driven

Spring Driven Reels are designed for all types of vehicle workshops where the hose can hang at a reachable height.  The patented spring drive makes the reel very easy to handle.


Motor Driven Reels are the optimal solution is workshops with a high ceiling, where overhead cranes have to be considered, or where high vehicles must pass.  These reels are operated with a hand unit (IR control or pendant control).

Spring Driven - 865s & 865SD

Adjustable Spring Tension

Adjustable Spring Tension

Adjustable Spring Tension

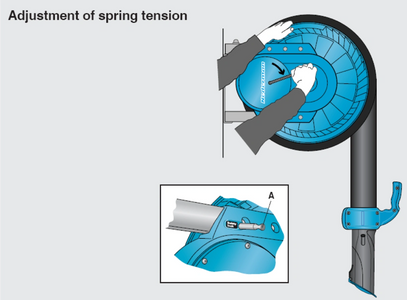

The wrench used to adjust the spring tension comes with each reel.  The drum can be locked in place while adjusting the spring tension, simply push in the drum locking pin and pull out once finished.

Control Hose Height

Adjustable Spring Tension

Adjustable Spring Tension

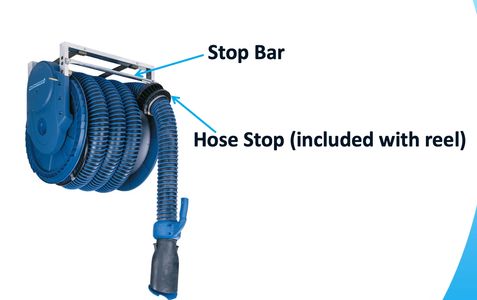

The adjustable hose stop controls how much hose hangs down from the reel.  When the hose stop hits the stop bar, the hose will stop winding up the hose drum.  The stop is held in place with two hose clamps (included).

Installation Made Simple

Optional Automatic Damper

Optional Automatic Damper

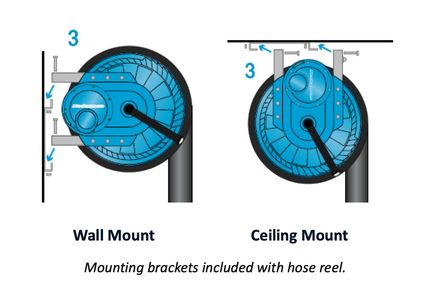

Mounting brackets and a full size template are included with all 865 reels.  Competition does not offer brackets or templates.  Can be mounted on the wall or ceiling depending on the needs of the workplace.

Optional Automatic Damper

Optional Automatic Damper

Optional Automatic Damper


The reels are available with or without the automatic damper.  The integrated automatic mechanical damper on the 865SD makes the reel more energy efficient and reduces the noise level.

Motor Driven - 865M

Optimal For High Ceilings

Optimal For High Ceilings

Optimal For High Ceilings

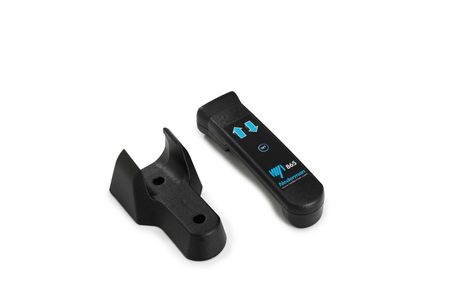

The motorized reel is operated with either an IR control or pendant.  A receiving eye on the reel shows the status of the operation.

Limit Switches

Optimal For High Ceilings

Optimal For High Ceilings


Electronic upper and lower limit switches reduce the risk of malfunction and unnecessary wearing of the hose.  These switches are controlled from the ground by the pendant switch for a quick and easy change

Auto Fan Start/Stop Function

Auto Fan Start/Stop Function

Auto Fan Start/Stop Function


The fan start/stop function is automatically controlled and no programming is lost when a power failure occurs.  If the power is cut, the electro-magnetic brake will lock the drum instantly.

Mounting Alternatives

Auto Fan Start/Stop Function

Auto Fan Start/Stop Function

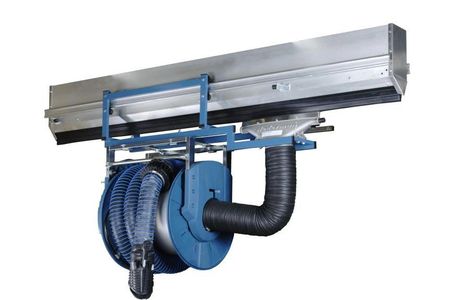

Optional trolley parts allow the 865S, 865SD, & 865M to be mounted on the ALU 150 or 250 rail.  The reels can also be mounted to extension arms, as well as directly to the fan.
